This equipment can be combined with the LSS-F03 series lightning surge simulators to perform noise superimposition tests on three-phase four-wire (L1, L2, L3, N) lines up to AC600V / 300A.

* This product is a custom product. Please contact us for details.

This tester by combining the lightning surge tester, it is possible to perform noise superim-position tests up to DC500V 60A.
In combination with the lightning surge tester body, you can perform tests by switching the applied phase and setting the applied phase sweep.
※When using this superimposition unit, it is necessary to modify the tester body. Please con-tact us for details.

Jig used for measureing the output waveform from the CDN for telecom line.

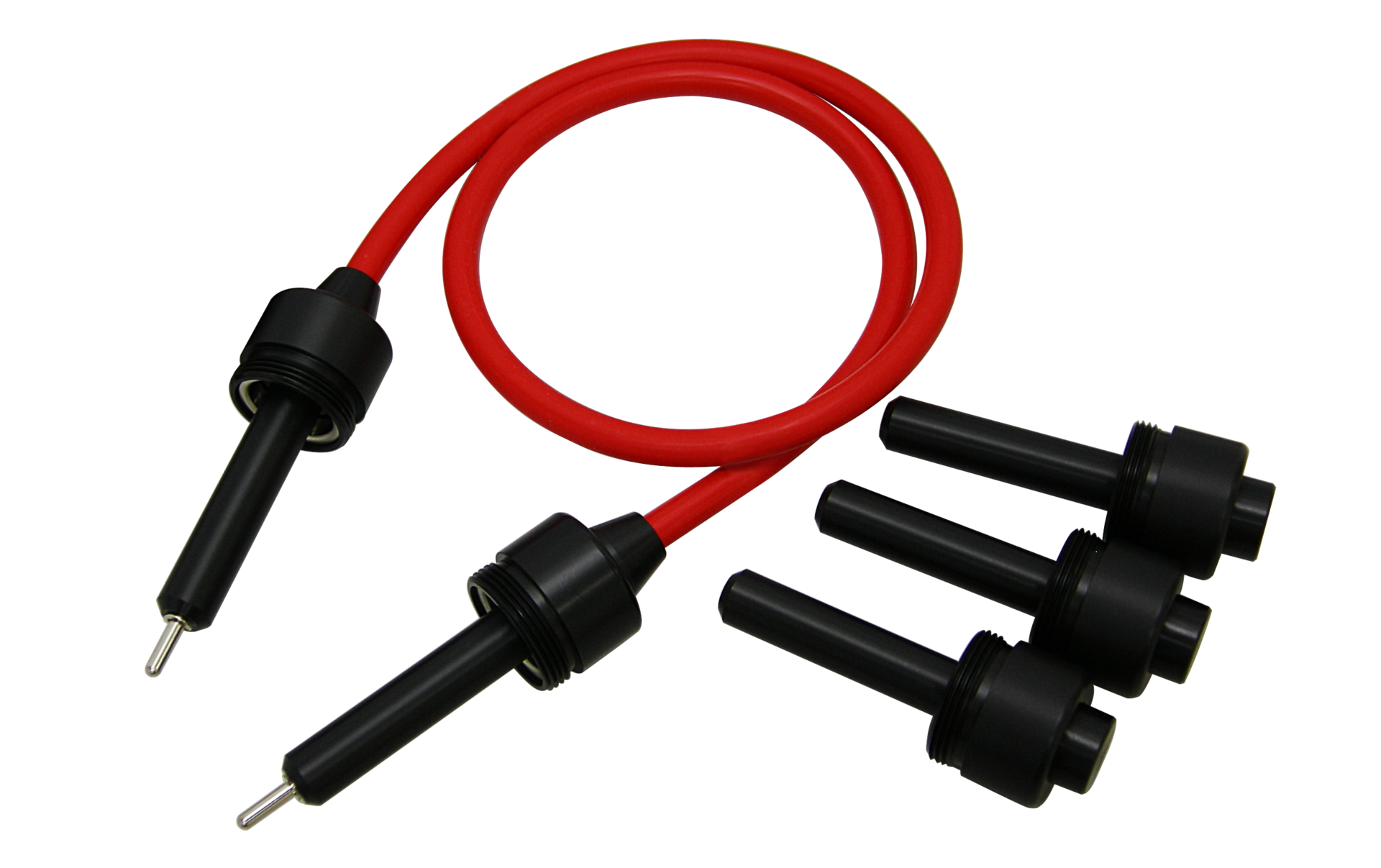

Jig for checking voltage waveforms and current waveforms of LSS-F03 series.

A relay terminal board for connecting the output of the LSS-F03 series to the EUT.
By wiring to the included multi-outlet, you can directly connect a power plug that supports the standards of each country.
single phase 3 lines (withstand voltage 4.5kV)

● Compatible models : LSS-F03 series

Terminal block board for CDN to connect EUT. 3 pins

● Compatible models : LSS-F03 series

Terminal block board for CDN to connect EUT. 5 pins

● Compatible models : LSS-F03 series

Arrester unit for surge coupling

● Compatible models : LSS-F03 series

Arrester unit for surge decoupling.
● Compatible models : LSS-F03 series

Connection adapter used for remotely controlling the simulator from a PC.
Equipped with USB-Optical conversion fiber optic cable (5m).

● Compatible models : LSS-F03 series

Alarm lamp for LSS series. Allows to alert and call for attention by blinking during the test.

● Compatible models : LSS-F03 series

Allows construction of a safe test environment by connecting with the lightning surge simulator's interlock function.
Combined use with the EUT protection box ensures a completely safe test environment.

Protection box to prevent access to EUT during the test.
Further safety can be achieved by combining with the
protective safety is fence

（W) 600 x (D) 400 x (H) 350mm　*protrusions excluded

This CDN product is used to apply surges to interconnection lines as defined in the IEC61000-4-5 Standard. With The EUT power capacity of DC50V / 1A it is possible to inject surges to interconnection lines up to 6,600V. Possible to bypass inductor (20 mH) with connecting the attached connection plug to inductor bypass terminal in DC output. Possible to equip the attached surge protective arrestor between each line and ground.

Model TF-6633P is three-phase isolation transformer rated AC 600 V / 63 A and dielectric strength of 4 kV. For safety reasons, an isolation transformer is indispensable for AC powered testing for equipment.

Model TF-6503P is three-phase isolation transformer rated AC 600 V / 50 A and dielectric strength of 4 kV. For safety reasons, an isolation transformer is indispensable for AC powered testing for equipment.

Model TF-2302P is a single-phase isolation transformer rated AC240V/30A with dielectric strength of 4kV.
For safety reasons, an isolation transformer is indispensable for AC powered testing for equipment.

This CDN product is used to apply surges to unshielded symmetrical high-speed communication lines with speed up to 1000Mbit/s, as defined in the IEC 61000-4-5 Standard.

This tester can perform a noise coupling test on a three-phase line up to AC600V / 50A by combining with the lightning surge tester (LSS-720B).

※This is a customized product. Please contact us for details.

This is a box that can turn on the trigger (generate a surge) at a specified number of times and at specified intervals by combining it with the lightning surge tester LSS-700 series.
