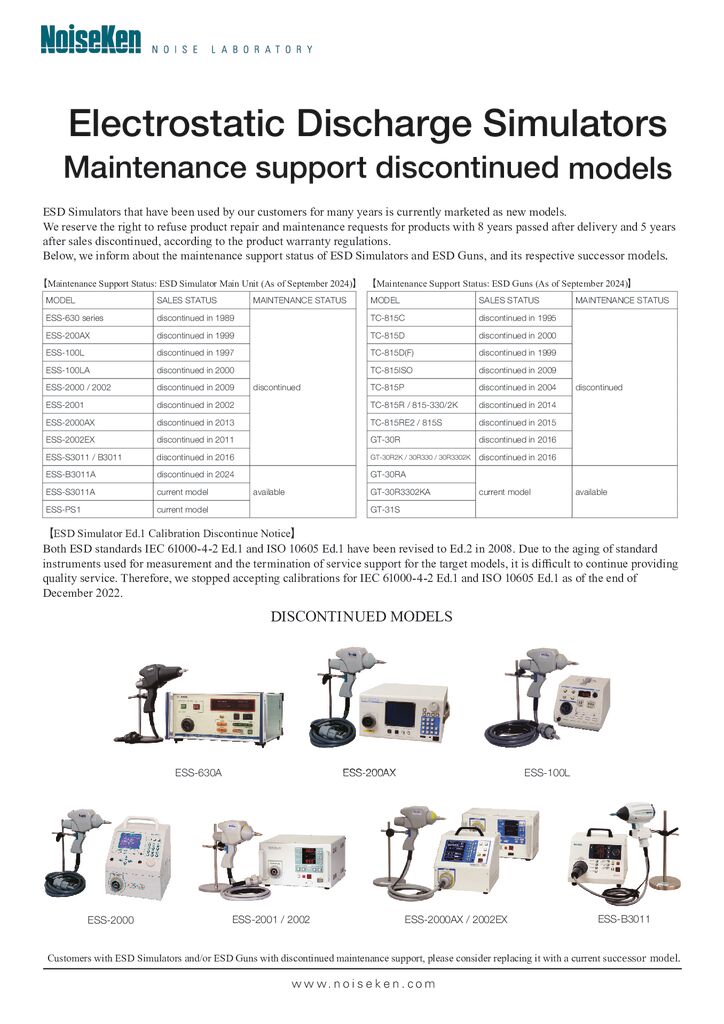

Electrostatic Discharge Simulator (ESS series) ESD Simulator ESS-S3011A & GT-30RA

Free you from the hassle of testing by the pre-check function and the weight reduction of the discharge gun

EMC test equipment to evaluate the resistibility of electronic equipment when energy charged on a human body or object is discharged to the electronic equipment.
This can be available for evaluating malfunctions or functions declines of electronic equipment against the ESD. Programmable simulator to ease some complicated tests. The output voltage is up to 30kV allowing to perform testing compliant to IEC61000-4-2 & ISO 10605 Standards.

ESD Simulator ESS-S3011A & GT-30RA product image

EMC Testing

Features

Features
read more
● “3 pre-checking function” to ensure more reliable testing
● “CR constant indicator” to prevent incorrect unit attachment
● One-touch exchange of gun head and CR unit realized
● “Ten-key & Rotary knob” to ease the setting.
● “Infra-red Remote Controller” allowing setting remotely from the generator (Standard attached)
● “Discharge Detecting Function” to realize the air-discharge confirmation
● “Lightest discharge gun in the market” to lighten the continuous operation (Excluding the cable and connector)
● “White LED Irradiator” to facilitate the visualization of the discharging areas
● “Control Software” to enable the test result reporting and control with PC
* The software is available for a free of charge download from our web-site. (The connection cable is necessary in addition).
* C (Capacitor) and R (Resistor) for the discharge gun is one-body unit.

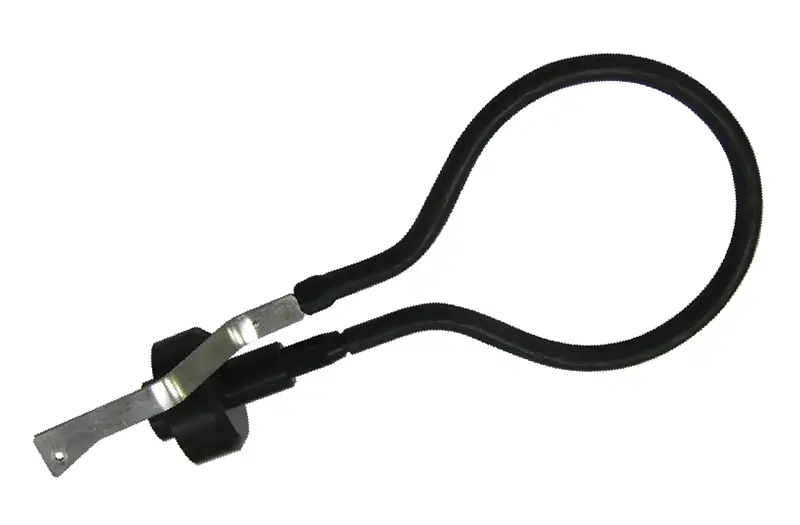

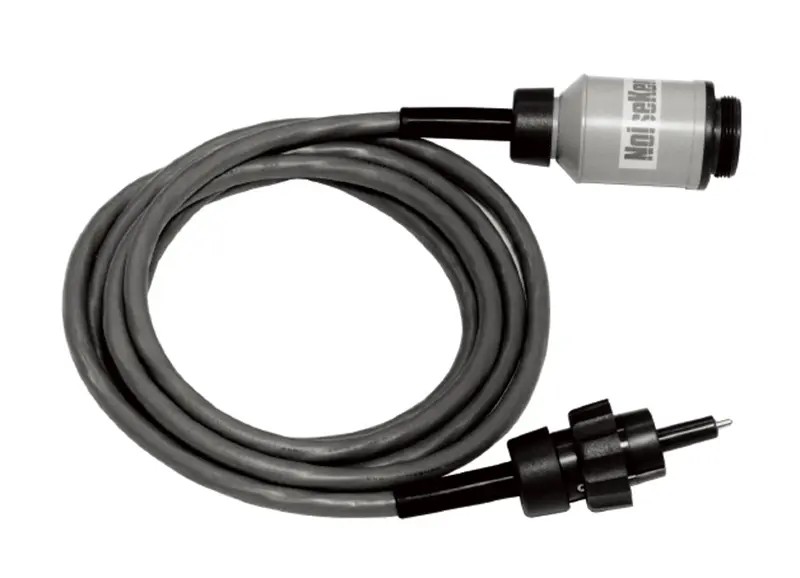

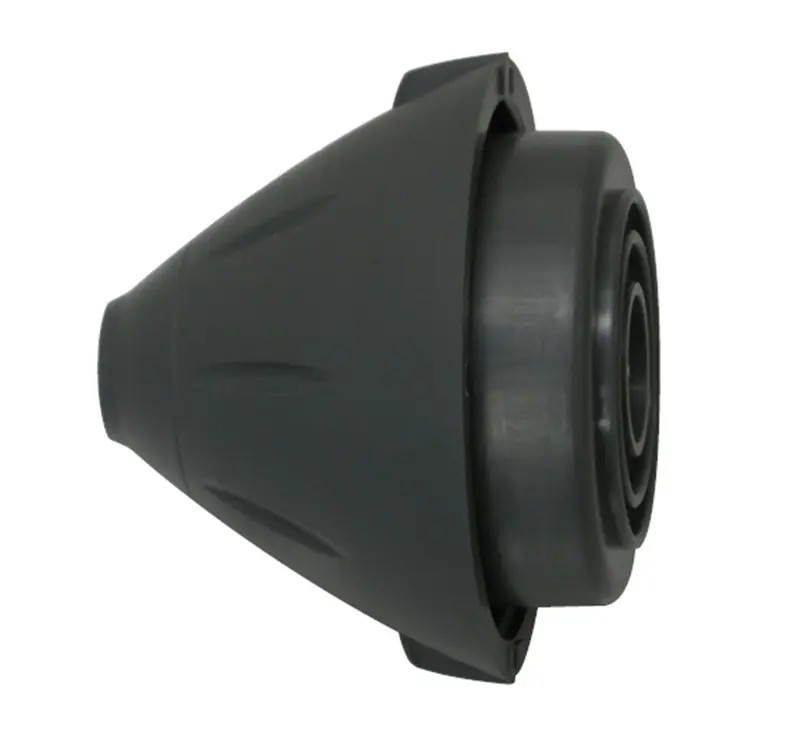

* ISO 10605 compliant test can be realized with the optional parts in addition.

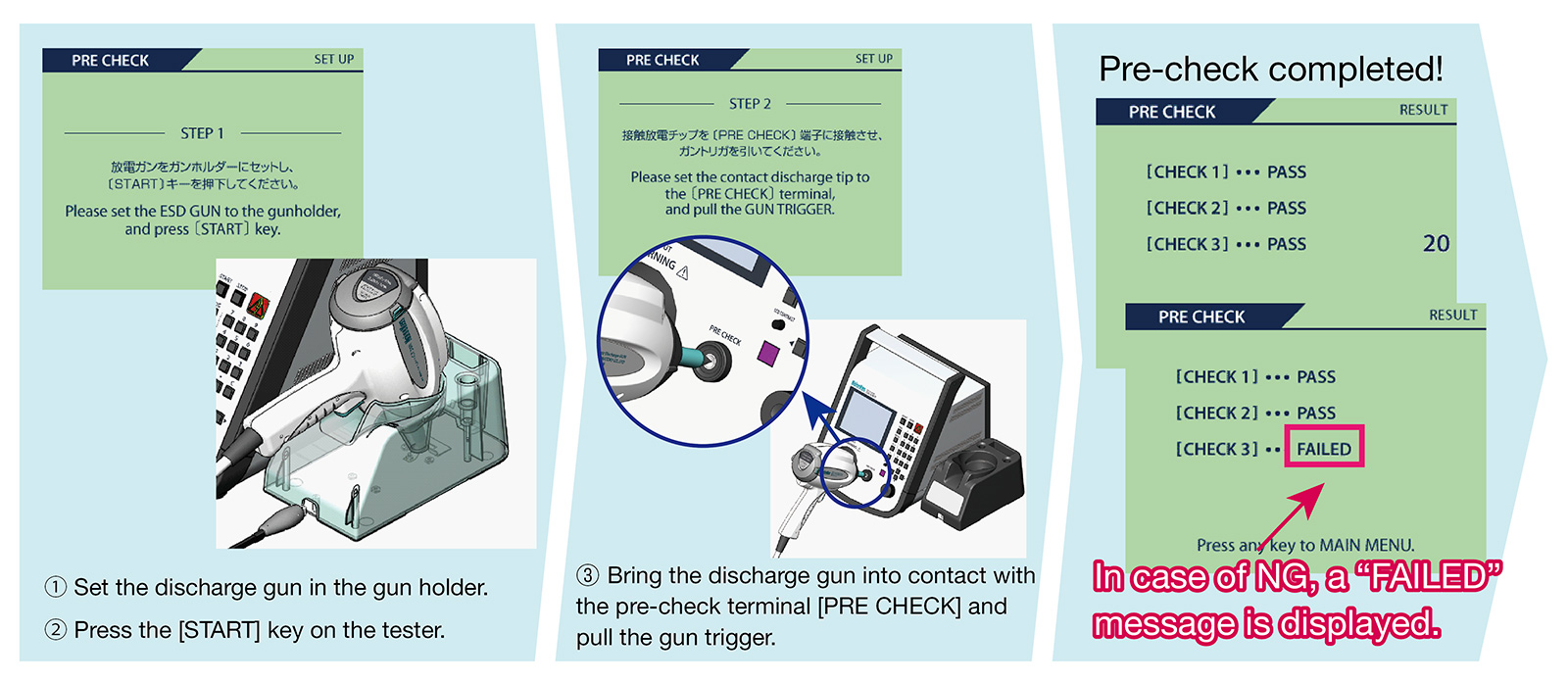

Achieve more reliable test! Equipped with "3 Pre-check Functions"

The new ESD simulator is equipped with 3 pre-check functions; "high voltage power output check", "insulation failure check", and "discharge relay operation check" on the main body and discharge gun.
read more
The new ESD simulator is equipped with 3 pre-check functions; “high voltage power output check”, “insulation failure check”, and “discharge relay operation check” on the main body and discharge gun.You can prevent troubles such as failing to perform the test properly; if you did not notice the failure of the tester body or the relay inside the discharge gun has reached the end of its life.
[Check 1] High-voltage power output check: Check the error from the set value.
[Check 2] Insulation defect check: Checks for defective insulation withstand voltage.
[Check 3] Discharge relay operation check: Check the relay for wear.
Check the wear of the discharge relay by bringing the discharge gun into contact with the check terminal and discharging.
When the discharge gun is placed in the attached gun holder, you can check the output of the high-voltage power supply and check for insulation defects.

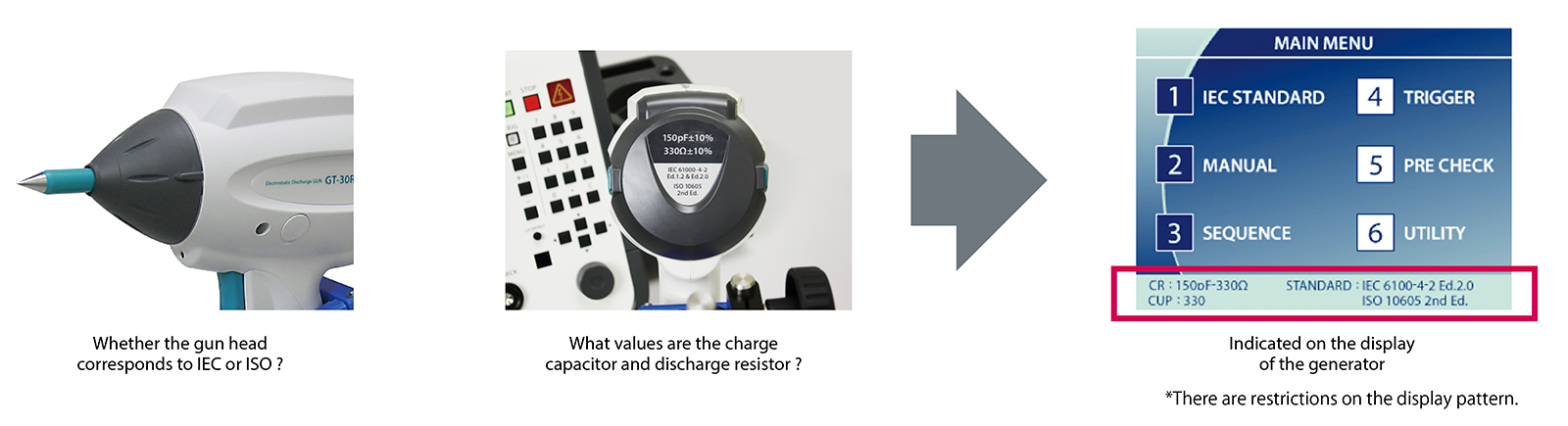

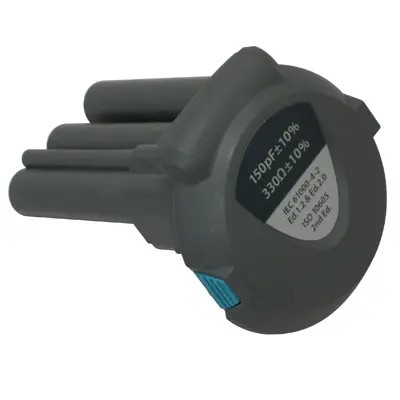

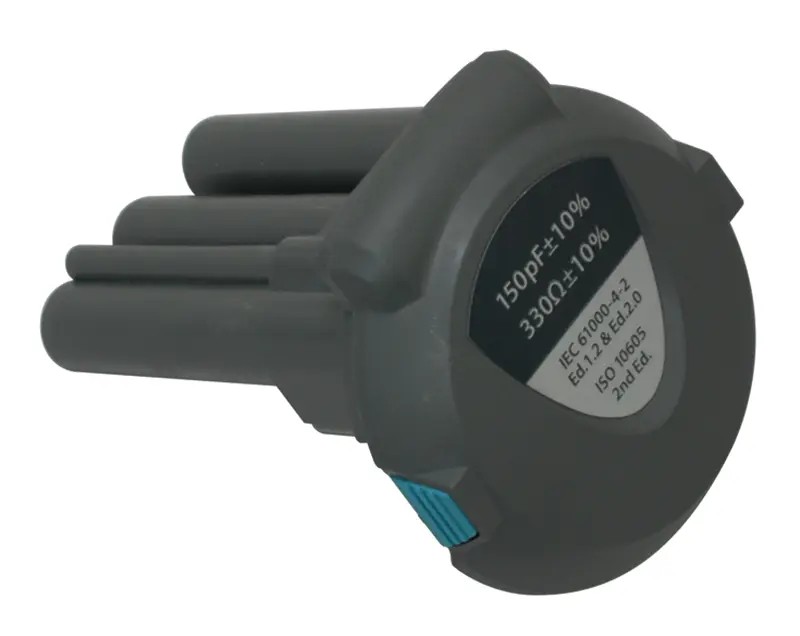

“CR constant indicator” to make sure the correct unit attachment

The constants of the discharge resistance and discharge capacitor, which were previously disassembled and checked, are now displayed on the main unit screen.

The constants of the discharge resistance and discharge capacitor, which were previously disassembled and checked, are now displayed on the main unit screen. When the CR unit or discharge cup of the discharge gun is replaced, it is automatically recognized and the type of CR unit is determined. The CR unit and the discharge cup are identified separately, and if the combination complies with the standard, the conforming standard is displayed at the bottom of the main menu.

CR unit [CR]	Discharge cup [CUP]	Compliant standard table
150pF-330Ω	330	IEC 61000-4-2 Ed.2、10605 2nd Ed.
330pF-330Ω	330	ISO 10605 2nd Ed.
150pF-2kΩ	2k	ISO 10605 1st Ed. & 2nd Ed.
330pF-2kΩ	2k	ISO 10605 1st Ed. & 2nd Ed

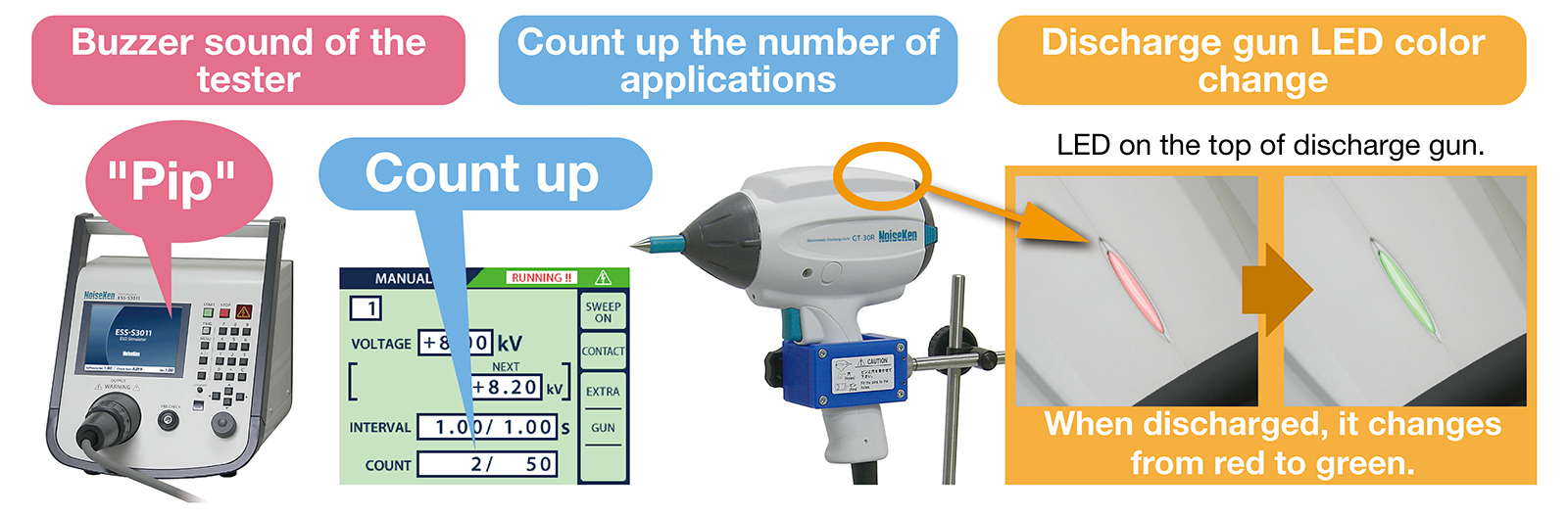

Easy to Check for Discharge Equipped with discharge detection function

read more
It is possible to check the presence or absence of discharge during an air discharge test, which was difficult until now, by checking the buzzer sound from the tester and the LED display on the top of the discharge gun.

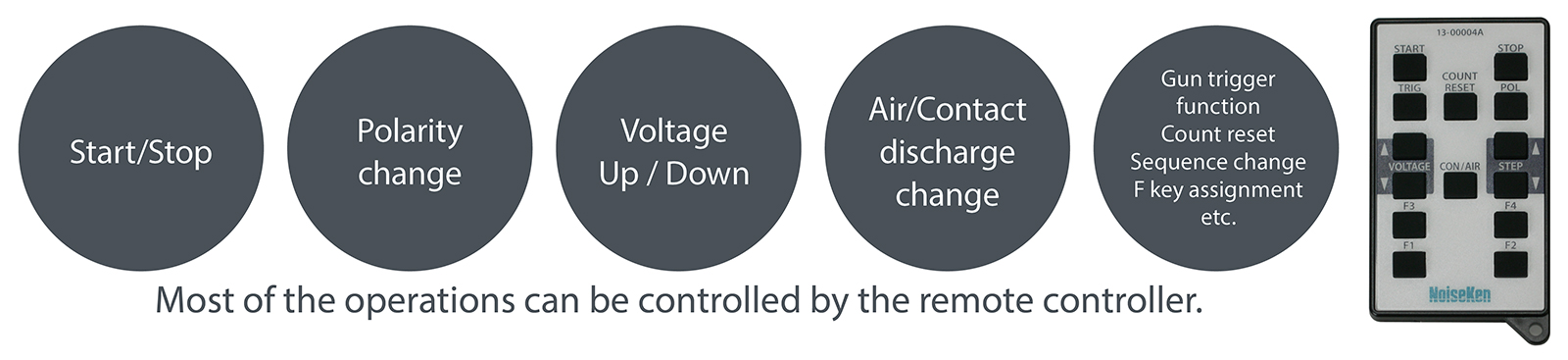

“Infra-red Remote Controller” standard attached to realize the setting remotely from the generator

read more
Since you can operate the tester with the remote control without returning to the tester during the test, the test can proceed smoothly.

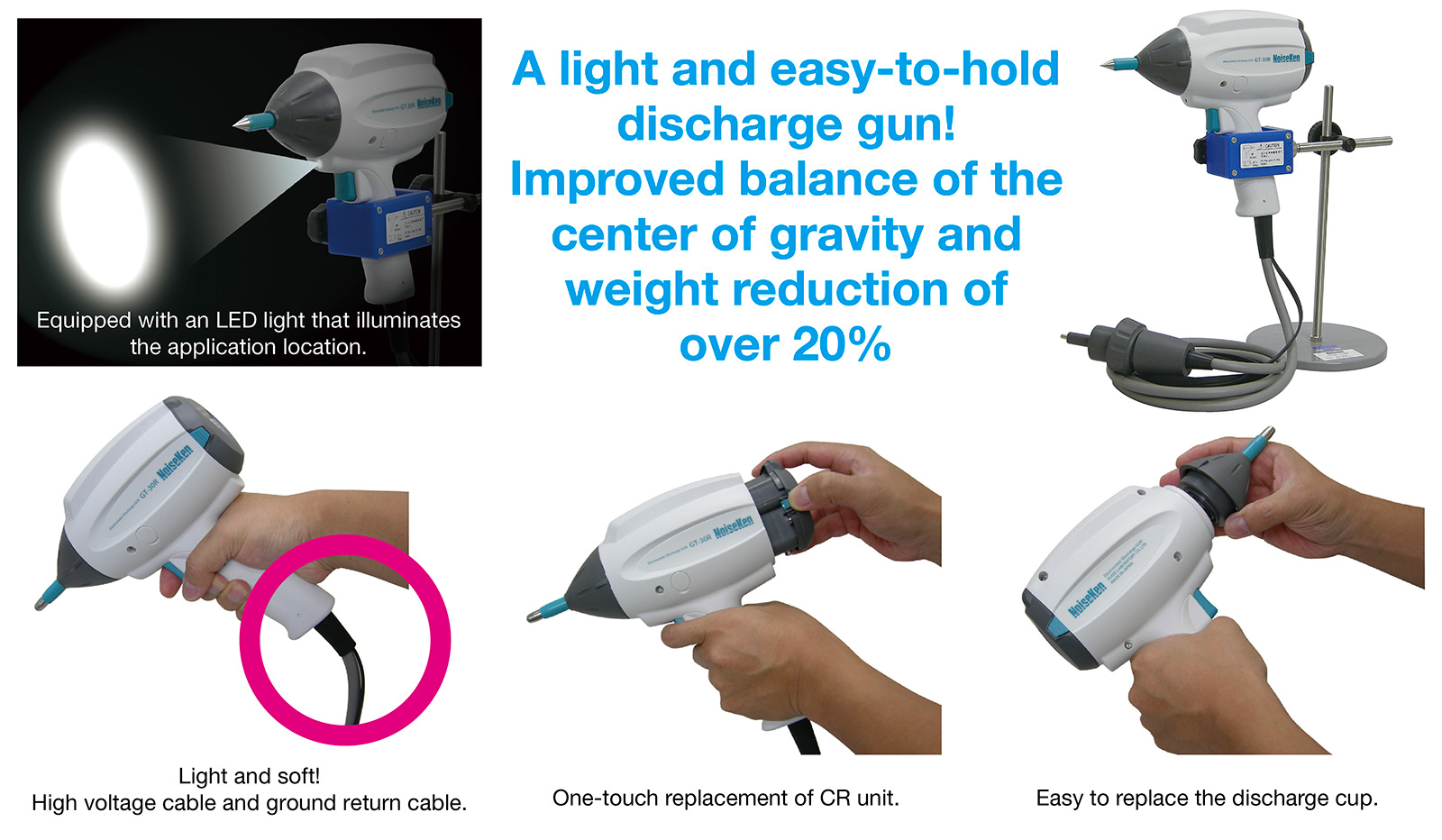

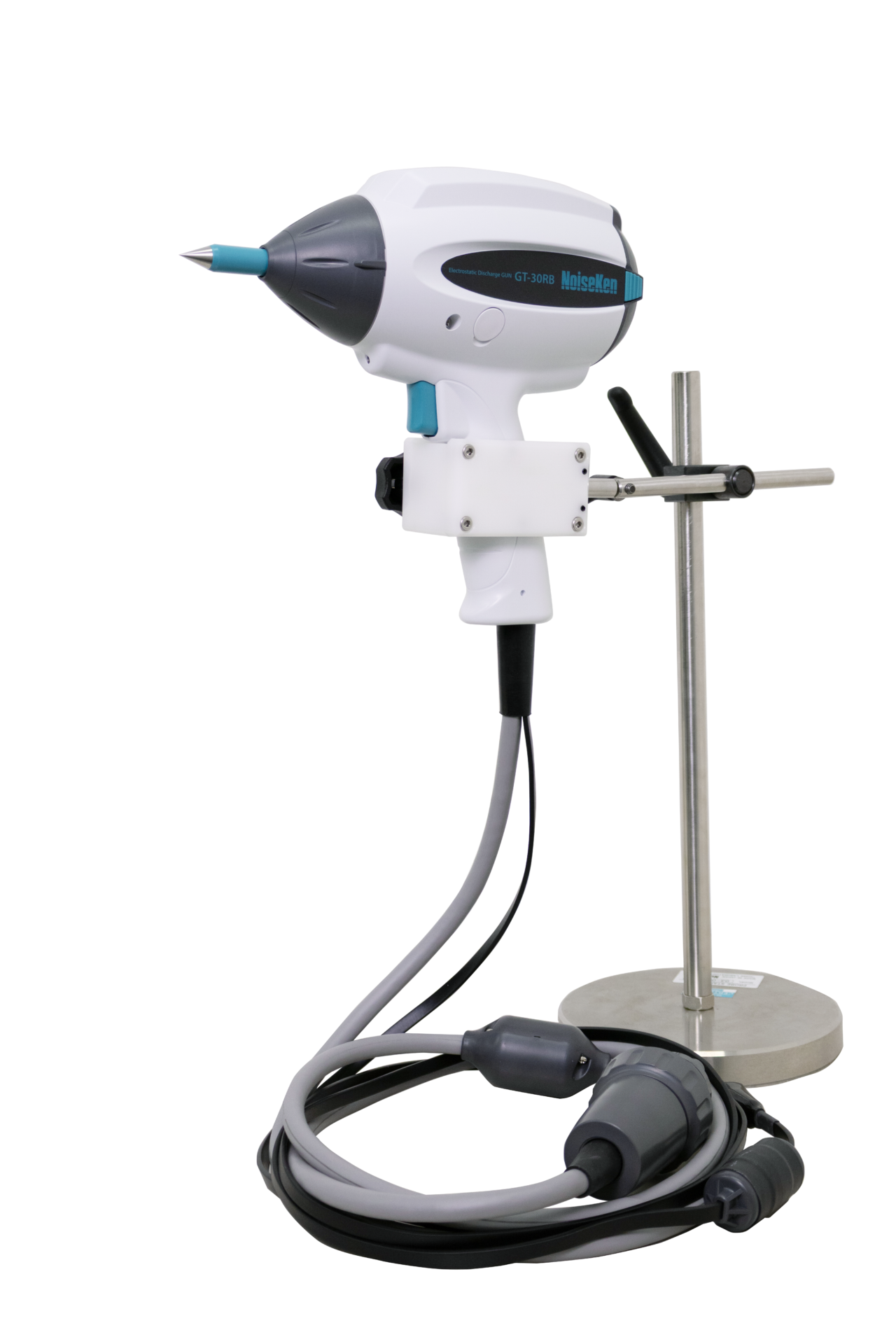

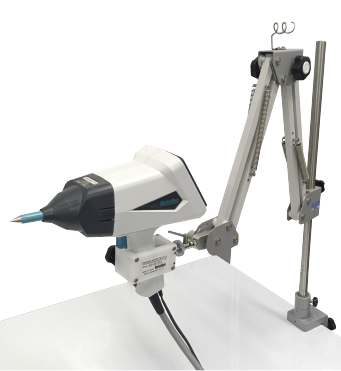

The discharge gun became lighter and easier to use

The discharge gun itself has been reviewed from scratch to achieve weight reduction and the best balance of the center of gravity.
read more
The discharge gun itself has been reviewed from scratch to achieve weight reduction and the best balance of the center of gravity.
The weight is lighter than previous one and the balance of the center of gravity has been improved, making it extremely easy to hold and reducing the burden on the arm during long-term tests. Please pick it up and try it.
In addition, it is now to easy to confirm the performing of air discharge by the LED indicator on the top of the discharge gun,
which was possible only by visual check before, making it difficult to confirm at times. Also, it is a discharge gun with a full range of functions and operations, such as easy replacement of the CR units and discharge cup, which used to take time and effort, and the installation of an “LED light” that brightly illuminates the application.

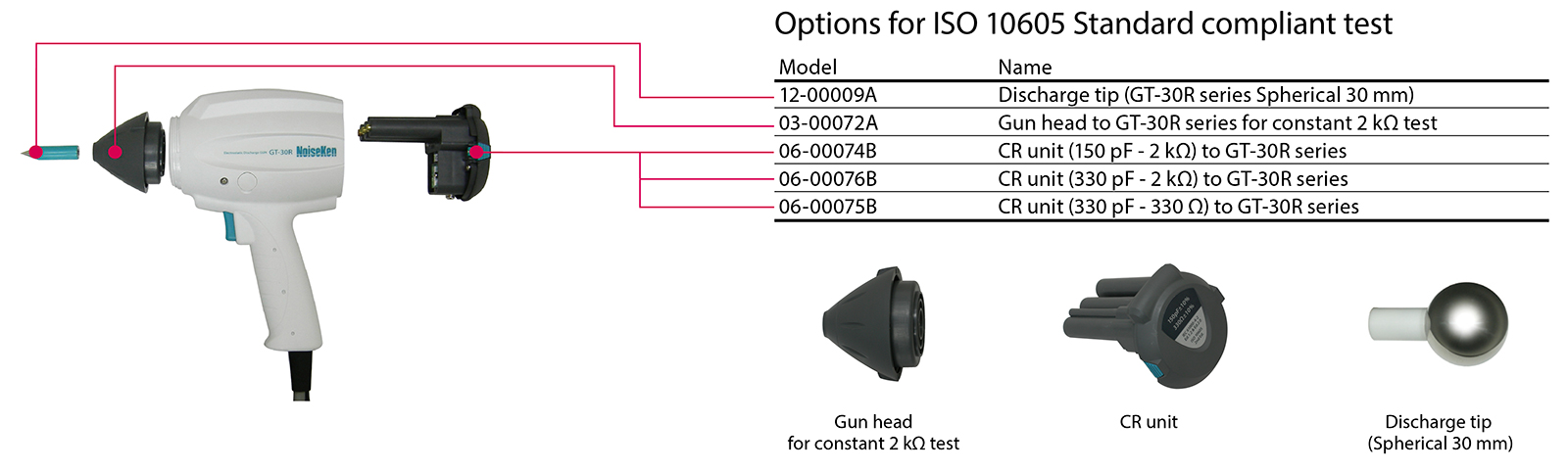

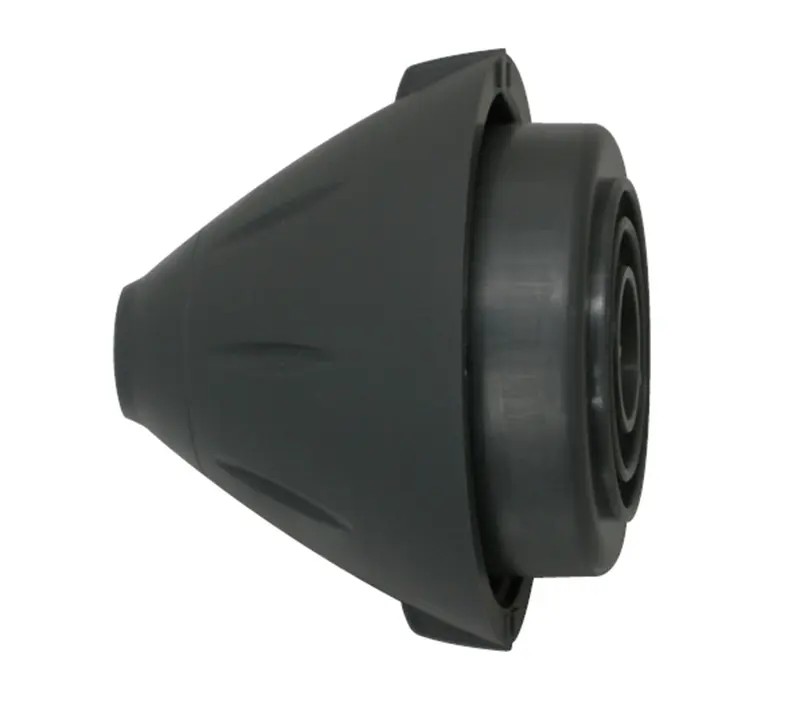

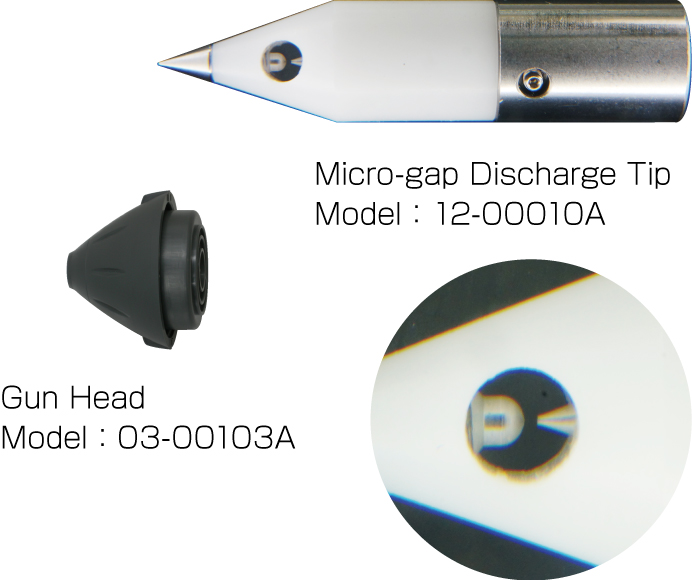

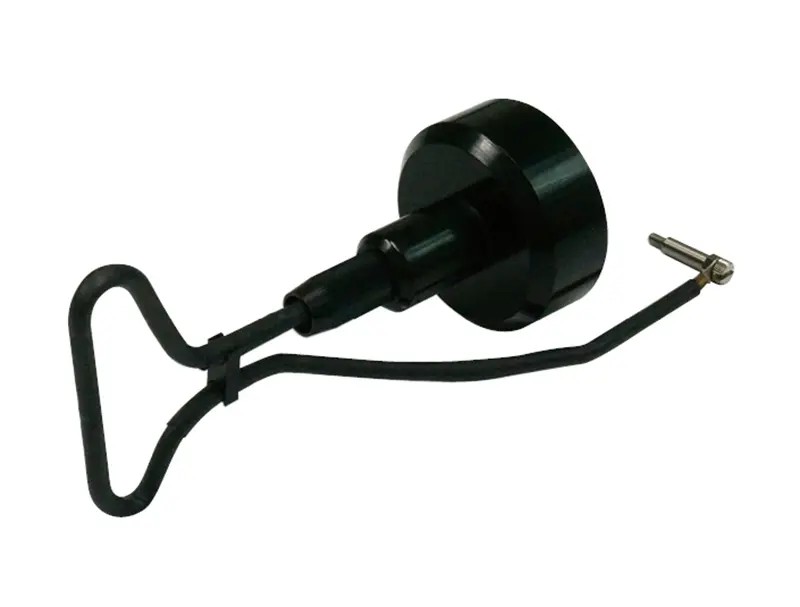

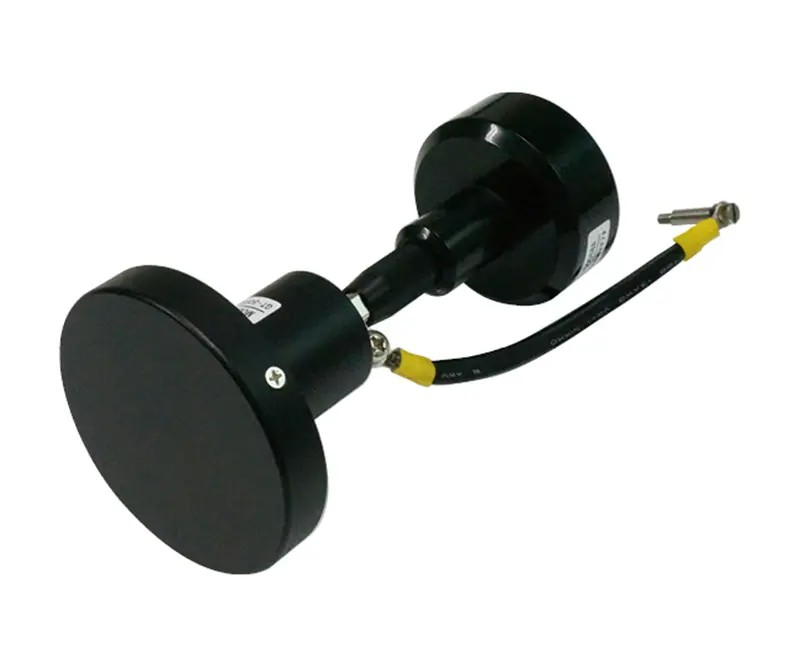

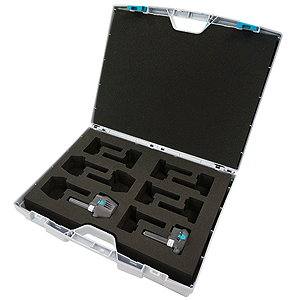

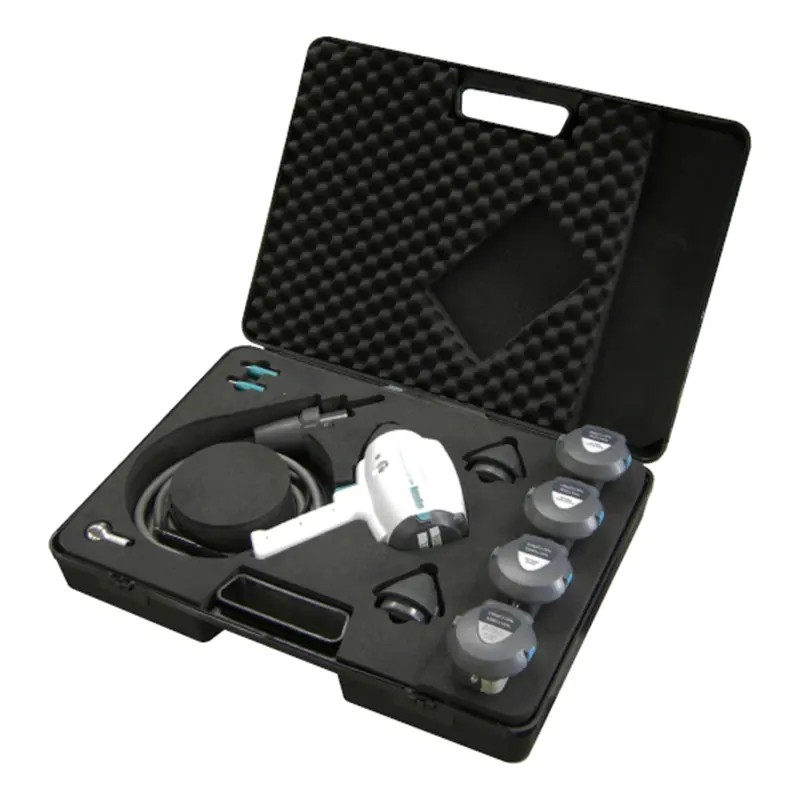

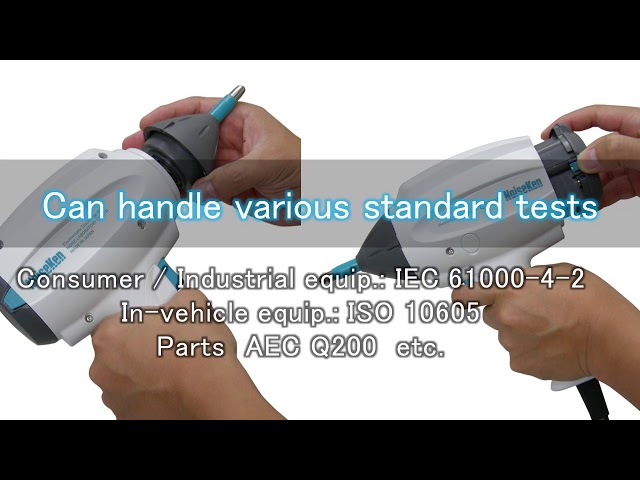

ISO 10605 standard compliant discharge gun package available

By adding the optional discharge cup and CR units, it performs tests that comply with the ISO 10605 standard.
read more
By adding the optional discharge cup and CR units, it performs tests that comply with the ISO 10605 standard.
Since it is easily replaced the discharge cups and CR units, various CR constants can be tested with a single discharge gun.

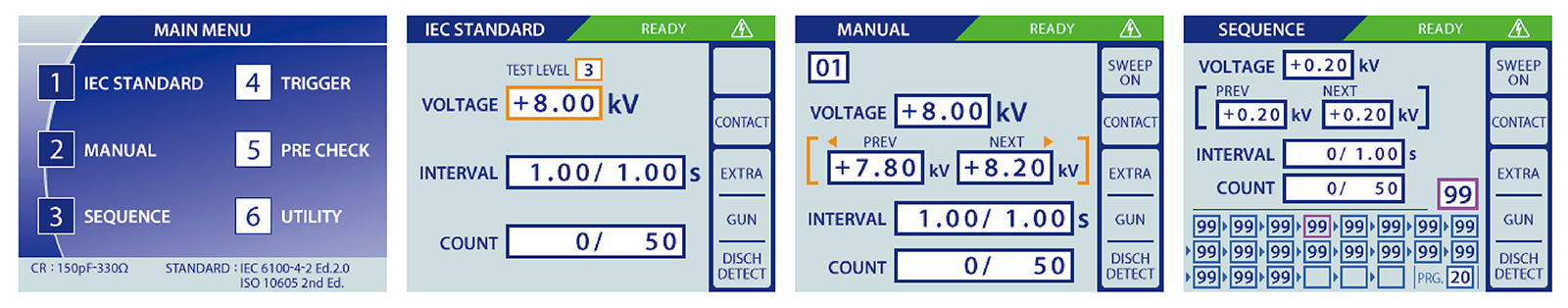

High visibility LCD panel and operatability

Reviewed the past operatability, adding Ten-key and Rotary knob realizing an easier and more comfortable operation. can be realized.
read more
Reviewed the past operatability, adding Ten-key and Rotary knob realizing an easier and more comfortable operation. can be realized.
In “1 IEC STANDARD” in MAIN MENU, since the test levels are preset, the test parameters can be set easily only with selection of the test level. In “2 MANUAL”, voltage, number of times interval and sweep settings of the test can be selected and also the set conditions can be saved. In “3 SEQUENCE”, the set conditions in MANUAL can be recalled for combining them so as to realize the arbitrary sequential tests. In addition, varied functions like setting for gun trigger, automated ESD eliminator, etc. are equipped.

back to list

Specifications

Parameter	Specification
Polarity	Positive / Negative
Output voltage	0.20 kV ～ 30.0 kV(30.5 kV max) *0.20kV〜1.99kV ±10%　2.00kV〜30.0kV ±5% ～ 10.0 kV : 0.01 kV step ～ 30.0 kV : 0.1 kV step
Repetition cycle	0.05s ～ 600s ±10% / Manual Set step : 0.01s (0.05 ～ 9.99s), 0.10s (10.0 ～ 600.0s)
Discharge number of times	1 ～ 60,000 times, Preset 1 time step or continuous preset
Discharge mode	Contact discharge / Air discharge
Radiation level mode	NORMAL mode / EXTRA mode
Trigger mode	Gun trigger / Main trigger / External trigger
Operation panel	Color LCD / Push-buttons (Partially lighting)

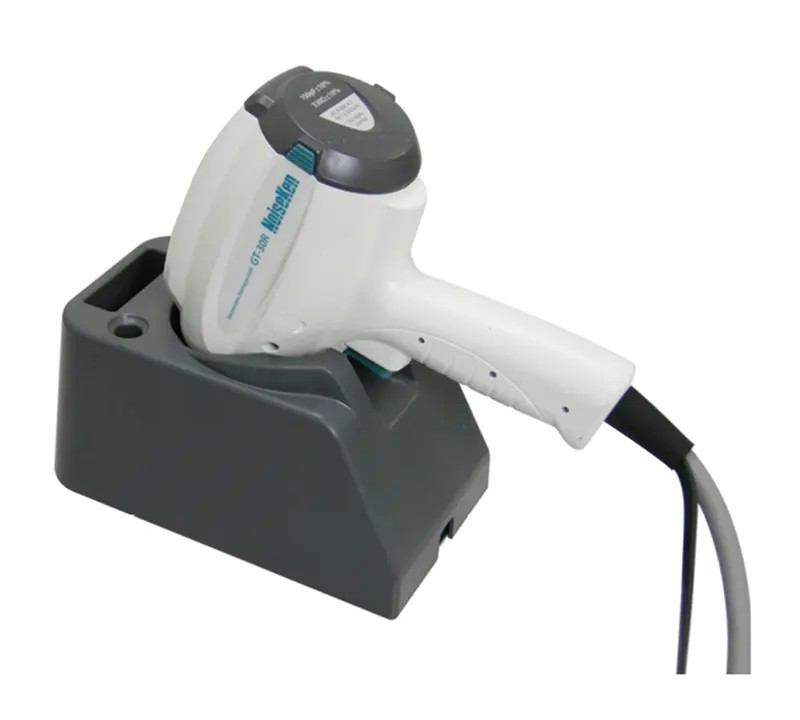

Gun holder	Standard attached (to hold the discharge gun Model GT-30RA)
Radiation mode select switch	Extra / Normal switching function built-in
Discharge detection	Discharge detection function in air-discharge equipped
Pre-checking function	Following 3 steps function equipped (by user operation. Not the calibration but just checking) STEP1 : High voltage output checking STEP2 : Withstanding voltage checking STEP3 : Discharge relay operation checking
CR & Gun head checking	CR constant and gun head recognizable (indication to prevent a wrong combination)
"IEC STANDARD" test mode	Contact discharge mode : 2.0 kV, 4.0 kV, 6.0 kV and 8.0 kV steps Air discharge mode : 2.0 kV, 4.0 kV, 8.0 kV and 15.0 kV steps
"MANUAL" test mode	Contact / Air discharge mode, Arbitrary setting 0.2 kV ～ 30.0 kV Sweeping function built-in, Recordable up to 99 units
"SEQUENCE" test mode	Enables to operate units set in MANUAL mode continuously. Max. 22 steps / 1 program and the programs recordable up to 20.
Warning lamp	Lighting at voltage output from the generator. Blinking at electro-static discharging
Charge capacitor / resistor	150 pF±10%, 330Ω±10% (Built-in CR unit for discharge gun GT-30RA)
Charge resistor in generator	10 MΩ (Totally 53Ω in combination with 43 MΩ in discharge gun)*
AUX connector	D-SUB 15 pins female connector (for connecting to patolight, automated ESD eliminator, external interlock input, external trigger input terminal)
Optical communication	Optical connector (serial interface) for connecting to PC connector
Power supply / consumption	AC100 V ～ AC240 V 50 Hz / 60 Hz ±10% 75VA
Dimensions	Generator : (W)392 mm x (H)312 mm x (D)295.3 mm (gun holder included) Discharge gun : (W)83.3 mm x (H)217.2 mm x (D)229.3 mm
Weight	Generator : approx. 7.5 kg (with Gun Holder) Discharge gun : approx. 1080 g (cable and connector excluded)

* The constant depends on combination with CR unit for the discharge gun

■ Details of GT-30RA discharge gun: Discharge gun (with discharge cup 330 Ω test), CR unit 06-00073B (150 pF – 330 Ω), discharge tips ( conical / round)
