For measuring the hold time and output voltage of electrostatic testers

“Infra-red Remote Controller” standard attached to realize the setting remotely from the generator

Optical conversion adaptor Used for remote control with PC. 5 m of optical fiber cable with USB interface attached.

● Compatible model : ESS-S3011A

Enable to connect warning lamp, automated ESD
eliminator and external trigger simultaneously
● Compatible model : ESS-S3011A

Warning light used for alerting and calling for attention
during the test.
● Compatible model : ESS-S3011A
* The connection is done with DSUB connector.

Holder for discharge gun during the test.
Also, can be the pre-checking fixture in combination between ESS-S3011A and GT-30R series.

● Compatible discharge gun : GT-30R series

This product is a bendable and flexible attachment for discharge tips.
It enables the application of electrostatic discharge to deep and hard-to-reach locations during static electricity testing.

*Not regulated by IEC standard
*This product is a custom specification product. Please contact us for details.

This product is a Fixture for creating and discharging minimum gaps in the contact discharge of an electrostatic test.
The Fixture consists of a metal parallel board, an insulation plate, a destination discharge tip° (2 pcs.), a discharge tip pedestal (2 pcs.), a metal parallel board connecting rod, and an EUT connecting rod.
The adjustment of the clearance of 7mm between the two conical discharge tips can be adjusted by the user using screws.

This product is a dummy type unit, which does not have a capacitor or resistor inside the CR unit used for the discharge gun GT-30R series.
Only the first peak without the second peak in the electrostatic test is output.
It use to identify and evaluate malfunction countermeasures during static electricity tests.

● Compatible models: GT-30R series

A case that can store eight standard size CR units and four 500 pF CR units used in the discharge gun GT-3OR series.

● Target model: GT-30R series

ISO 10605 standard compliant discharge gun package available
By adding the optional discharge cup and CR units, it performs tests that comply with the ISO 10605 standard.
Since it is easily replaced the discharge cups and CR units, various CR constants can be tested with a single discharge gun.

Extension cable in connection between ESD simulator main unit and its discharge gun. The length is 3 m
* not compliant with the IEC standard

● Compatible discharge gun :GT-30R series

Magnetic field adaptor for Ford standard.
Connected to GT-30R series discharge gun, it generates transient magnetic fields.
(Not standardized in the IEC Standard)

●Available discharge gun : GT-30R series

Adaptor for simulating static induction as one of noise inductive mode with attachment to the discharge gun (Not standardized in the IEC Standard)

● Compatible discharge gun :GT-30R series

Adaptor for simulating electromagnetic induction as one of noise inductive mode with attachment to the discharge gun
(Not standardized in the IEC Standard)

● Compatible discharge gun : GT-30R series

Realize a faster rise time of the discharge current than IEC 61000-4-2 standard value (0.6 ～ 1.0 ns) around 0.2 x 0.3 ns with attachment to the discharge gun.
(Not standardized in the IEC Standard)

● Compatible discharge gun : GT-30R series

Custom-designed discharge tips are avairable.Please contact us for details.
* Products not subject to IEC standards

Gun discharge tips
The all 3 tips are standard equipped with GT-30R series.

● Compatible discharge gun : GT-30R series

Enabling a more stringent evaluation for the real world ESD immunity
Connected to the NoiseKen ESD gun, this tip allows for a waveform with higher peak amplitude and a faster rise time. It is a common view that ESD immunity testing is the most challenging and passing the standard test does not always assure real world immunity. This tip is helpful for more extensive testing against non-standardized field events

Specialized Case for storing and carrying the discharge gun, CR units and the other related fixtures.

● Compatible discharge gun : GT-30R series

Gun head to be changed according to Standard compliant test. 2 kinds for the test with 330 Ω (03-00071A) and 2 kΩ (03-00072) are available.

● Compatible discharge gun : GT-30R series

CR units for GT-30R series ESD Guns
● Compatible discharge gun : GT-30R series

* Please contact us if you require a CR constant other than listed on this page.
* The unit size depends on the capacitor constant.

Metal plane to be placed onto the table in case of the testing to table top devices.
W1600 x D800 x t1.5mm x 1 pc. (Made of aluminum)

Wooden table to be used for the test to devices under test (DUT).
W1600 x H800 x D800 mm

Ground plane to be placed just under the wooden table.
W1800 x D1000 x t1.5 mm x 3 pcs. in 1 set (Made of aluminum)

When doing the electrostatic discharge test to fl oorstanding
equipment, to be used for fl oating the equipment
10cm higher than the ground reference plane.

Size : W 1200 x D 1200 x H 100 mm
Material : Wooden
Withstanding load : 500 kg

Used for floating EUT 10cm upper than the ground plane in case of testing to floor-standing EUT

Size : W100 x D100 x H100 mm
Material : Wood
Withstanding load: 500 kg

These series have excellent attenuation characteristics for impulse noises.
Used for line input insulation during impulse noise testing.

Enable to eliminate electric charge which has been charged to EUT automatically with connection to ESS-S3011A. (Not standardized in the IEC Standard)

● Compatible model : ESS-S3011A

Enables to move discharge gun vertically and horizontally to arbitrary desirable discharging point.
(Not standardized in the IEC/ISO Standard)

● Compatible discharge gun : GT-30R series
* Conversion adaptor model 03-00074A is necessary in addition for the attachment to GT-30R series

A probe stand used to fix the discharge gun for ESD Simulator. (Not standardized in the IEC Standard) Because of the articulated type, the discharge gun fixes in any direction.

Dimensions : (W) 1450 x (D)650 x (t) 0.5 mm

Dimensions : (W) 540 x (H)1540 x (D) 500mm

Dimensions : (W) 500 x (H)500 x (t) 1.5 mm

Cable to be used for eliminating the ESD on DUT and connect between HCP and GRP
470 kΩ x 2 pcs./1 set.

Sheet to be laid out in between DUT and GRP for the test to automotive electronics devices.

W1450 x D650 x t2 mm
Material: PVC (vinyl chloride) transparent

Blocks to float (isolate) wirings of DUT from GRP.
W300 x D300 x H50 mm, 5 pcs. in 1 set

Plate to be laid out under tires for the vehicle test
W500 x D500 x t1.5 mm

Cable to be used for grounding connection required in ISO 10605 (2001). L2000 x W50 mm
* Not required in ISO 10605 Ed.2 (2008)

Coupling plane used for the optional test in ISO 10605 Ed.2 (2008). It consists of a coupling plane (made of copper) and an insulation block.
* Ground reference plane is not included.

Mat to be laid out in between DUT and GRP for the ESD susceptibility test in the packaging and handling.
Surface resistance 107 x 109 Ω
W1000 x D500 x t2 mm

Adaptor for connecting between Free Arm Gun Stand 03-00022B and discharge gun GT-30R series.

● Compatible discharge gun : GT-30R series

Brush to eliminate the electrification on EUT / DUT before starting the test.

ESD test environment in conformance with EN/IEC61000-4-2 Standard.
Two types for EUT are available, table-top type and floor-standing type so that the environments can support the tests along EUT figures. Since the table is made of wood, influence to the test result should be small (quantitable test result can be expected since the discharge can be realized in state high frequency electromagnetic field is less lost) and the high reproducibility can be expected and realized. Also, can be versatilely utilized for another tests like impulse noise immunity test, etc.

ESD test environment in conformance with EN/IEC61000-4-2 Standard.
Two types for EUT are available, table-top type and floor-standing type so that the environments can support the tests along EUT figures. Since the table is made of wood, influence to the test result should be small (quantitable test result can be expected since the discharge can be realized in state high frequency electromagnetic field is less lost) and the high reproducibility can be expected and realized. Also, can be versatilely utilized for another tests like impulse noise immunity test, etc.

The board to fix the load resistor (MODEL NO. 06-00094A ESD current target) for measuring the discharge current waveform defined in IEC61000-4-2 Standard and ISO 10605 Ed.2 Standard

Dimensions : 1.2 m x 1.2 m

The board to fix the load resistor (MODEL NO. 06-00094A ESD current target) for simple measuring the discharge current waveform defined in IEC61000-4-2 Standard and ISO 10605 Ed.2 Standard. (not conforming to the standard)

Dimensions : 0.6 m x 0.6 m

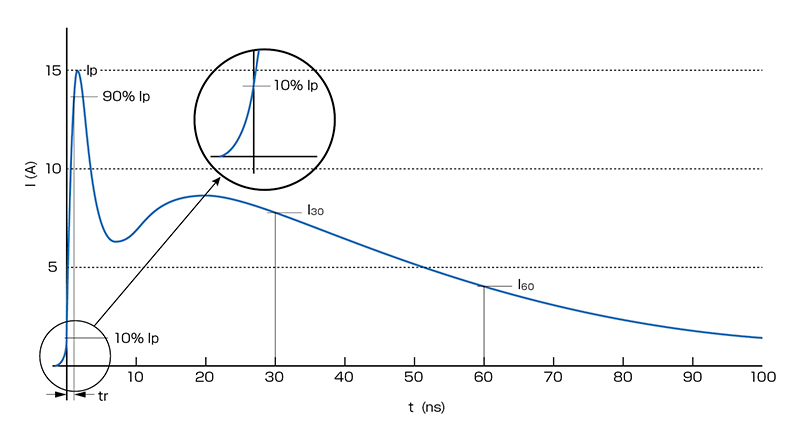

Load resistor to measure, verify and calibrate ESD current waveform defined in IEC61000-4-2 Standard and ISO 10605 Ed.2 Standard

Faraday cage which is defined in IIEC61000-4-2 Standard and ISO 10605 Ed.2 Standard to verify the discharge current waveform. Easy to move with casters equipped to the bottom.

Attenuator to protect measurement equipment for ESD current waveform.
Attenuation ratio 20 dB

High frequency responsible cable to connect ESD target and oscilloscope
BNC-SMA connector (02-00133A) is also available as an option

Set to calibrate the ESD target (06-00094A) in conformance with IEC61000-4-2 Ed.2.0 (2008).

Fixture to load and fix the discharge gun to the Faraday cage (FC-200) or current target mounting board (03-00052B)

Stand to pull and fix the ground cable of discharge gun 0.5 m backwards at the middle of the cable when calibrating the ESD current.
