Features

• Features

  read more

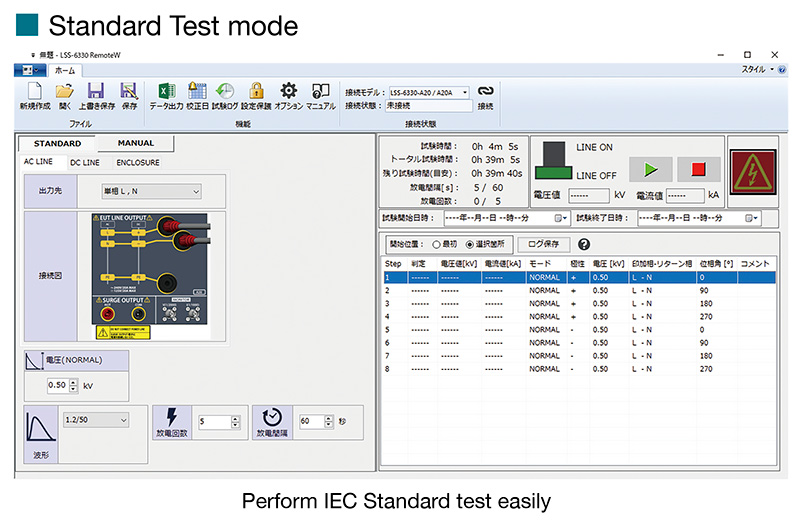

  • Standard Test mode allows testing based on IEC 61000-4-5 standard preset test conditions.

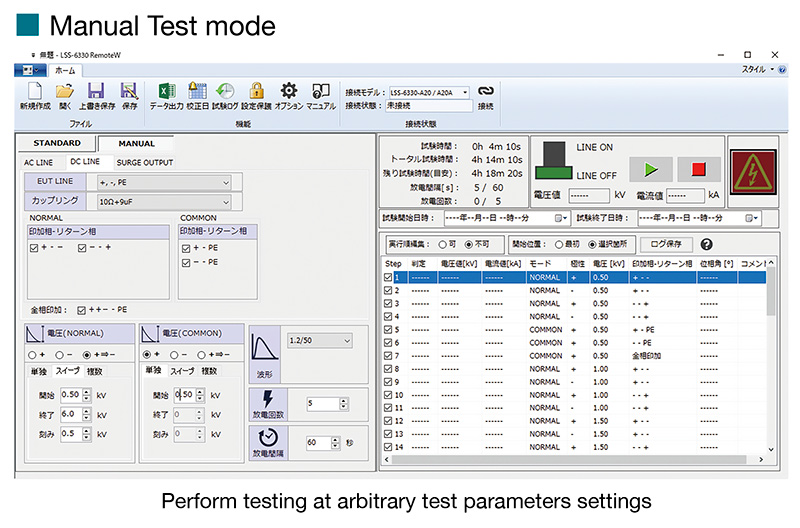

  • Manual Test mode allows arbitrary setting of test parameters such as output voltage, polarity, phase angle and application mode.

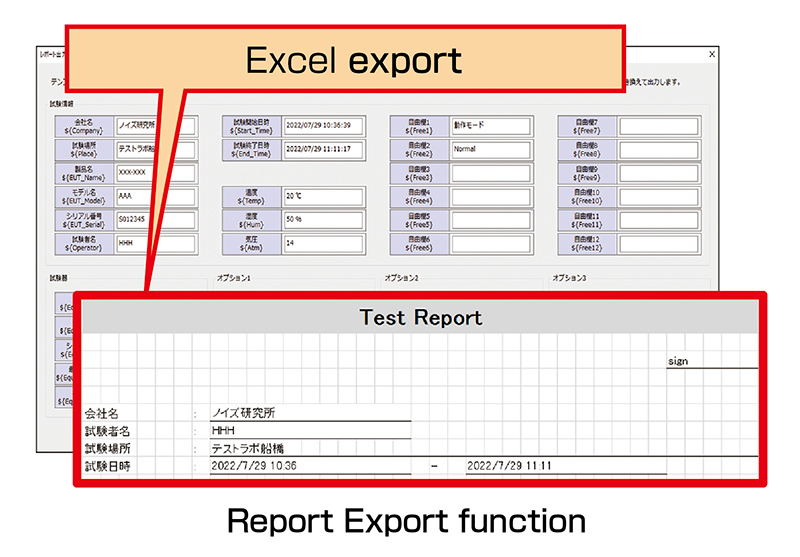

  • Test Report including test conditions, test lists and other test information can be exported in Excel format.
  • Compatible with Windows 10 and 11 64 bit versions, supports English and Japanese languages.



• Hardware Configuration



  read more

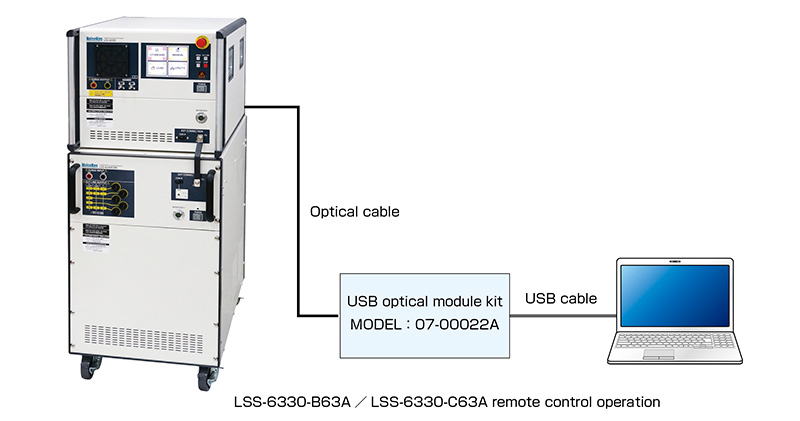

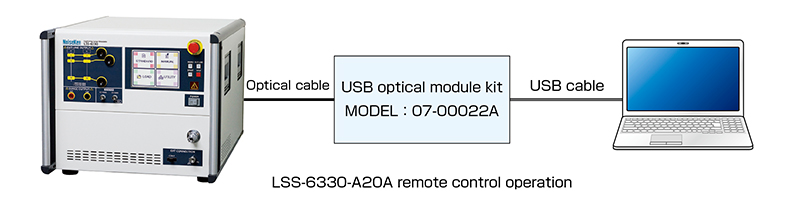

  【 Remote Control operation image 】
  Perform the lightning surge test by controlling the output voltage, polarity, phase angle and application mode of the simulator’s Main Unit.









• Software system requirements

  read more

  Parameter	Specifications
  OS	Windows 10,64bit（English or Japanese ver.） Windows 11,64bit（English or Japanese ver.）
  CPU	Dual-Core over 2.4GHz or better recommended
  RAM	8GB or more recommended
  Storage	5GB or more available free space
  Display	WXGA resolution（1366×768）minimum WXGA ++resolution（1600×900） or better recommended

  【Attention】
  〇 Operation is not guaranteed when using software on cloud services or using online storages.
  〇 For correct “Report Export” function, be sure to have installed Microsoft Excel compatible with the OS and within the support period.
  *Please use the Desktop version, not the Store App version.
  〇 USB Optical Module Kit (model 07-00022A) is required.
  〇 2 (two) available USB ports required.
  〇 CD-ROM or DVD-ROM drive required for installing drivers for the USB Optical module.

• PC remote control software



  read more
