This product is no longer manufactured or sold.
Product body (Discontinued) Pulse 1 / 2a Generator ISS-7610

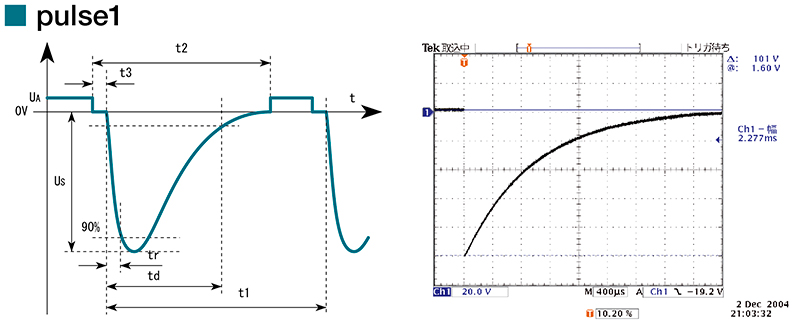

Pulse 1 : Simulation of transients due to supply disconnection from inductive loads. It is applicable to DUTs which, as used in the vehicle, remain connected directly in parallel with an inductive load.

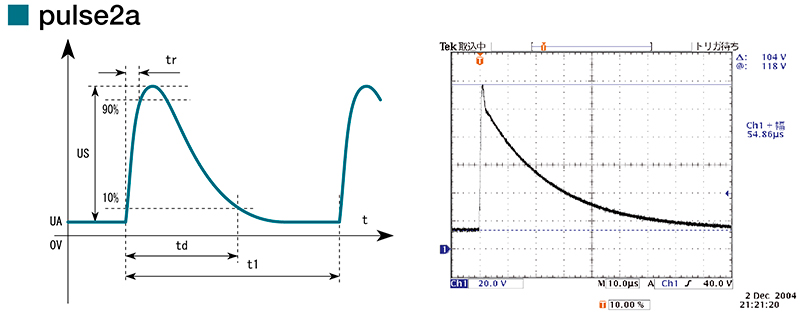

Pulse 2a : Simulates transients due to sudden interruption of currents in a device connected in parallel with the DUT due to the inductance of the wiring harness

Features
- Compliant tests to ISO 7637-2 (2011) Standard (Pulse1/Pulse2a generator)
- Stand-alone usage possible with 60V 30A CDN built-in.
■Output waveform
Specifications
Parameter Specification (Pulse 1) Specification (Pulse 2a) Output voltage (Us) -5 V 〜 -720 V (-1 V step) 5 V 〜 300 V (1V step) Output impedance (Ri) 10 Ω, 30 Ω, 50 Ω 2 Ω, 4 Ω, 10 Ω, 30 Ω, 50 Ω Pulse width (td) 50μs, 200μs, 300μs, 500μs, 1ms, 2ms 50μs, 200μs, 300μs, 500μs Rise time (tr) 1μs : -0.5μs /+0μs 3μs : -1.5μs /+0μs 1μs : -0.5μs /+0μs Pulse repetition period (t1) 0.5s 〜 99.9s (0.1s step), P2a : 0.1s 〜 99.9s (0.1s step) DUT power capacity DC 60 V / 30A Dimensions (W)430 x (H)200 x (D)522 mm Weight Approx. 20 kg Power consumption 260 VA Parameter Q'ty Output cable (2 m) Each 1 pc. of red & black color one DC input cable (2 m) 1 pc. Short lead for waveform verification 1 pc. Interlock plug 1 pc. Fuse (3.15 A) 2 pcs. AC cable 1 pc. Instruction manual 1 volume Contact
