Product body (Discontinued) Pulse 3a / 3b Generator ISS-7630
Simulation of transients which occur as a result of the switching processes. The characteristics of these transients are influenced by distributed capacitance and inductance of the wiring harness.

Features
- Compliant tests to ISO 7637-2 (2011) Standard (Pulse 3a/Pulse 3b generator)
- Stand-alone usage possible with 60V 30A CDN built-in.
- Frequency sweep (10 kHz – 100 kHz – 10 kHz) test possible (Option)
- Faster than 3.5ns rise time realized so as to conduct more severe test than the Standard.

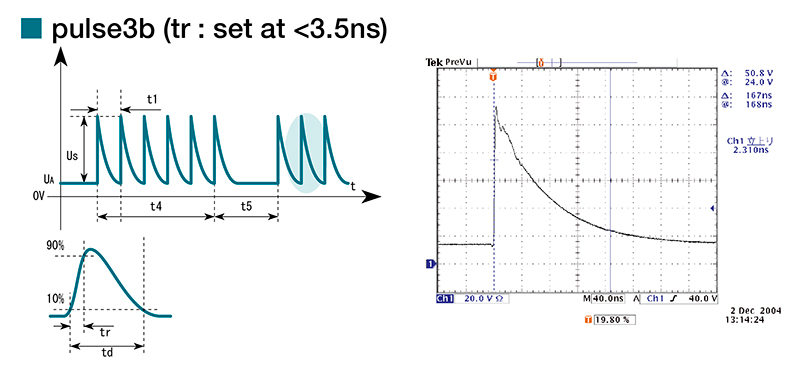

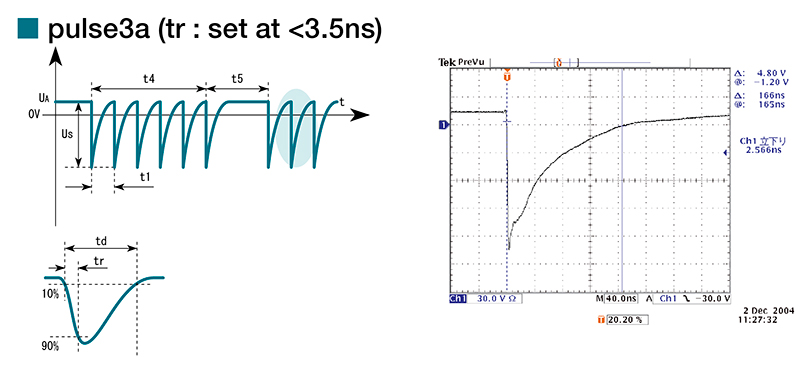

■Output waveform

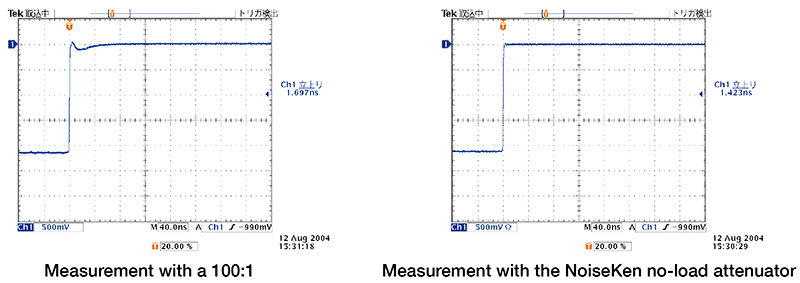

■Difference of the impulse response among measurement probes
Since Pulse 3a / 3b contain high frequency components, the waveform measurement should be paid attention.

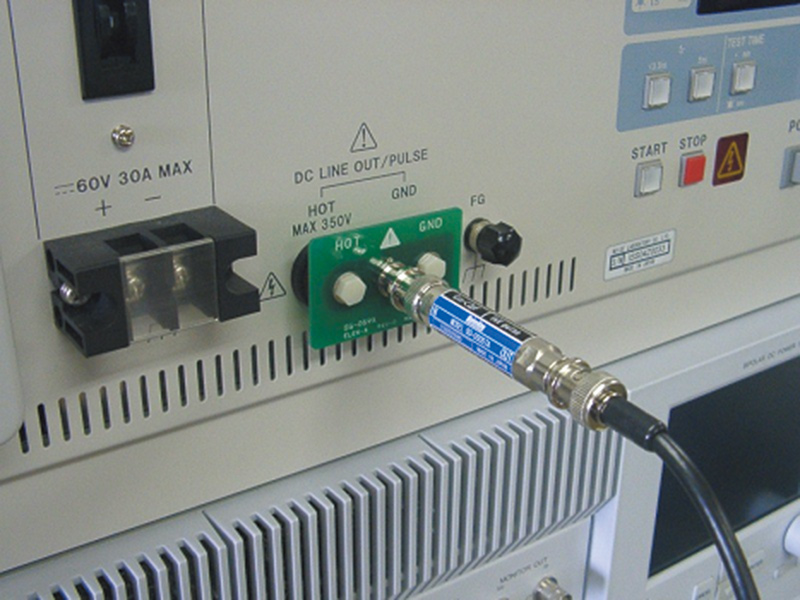

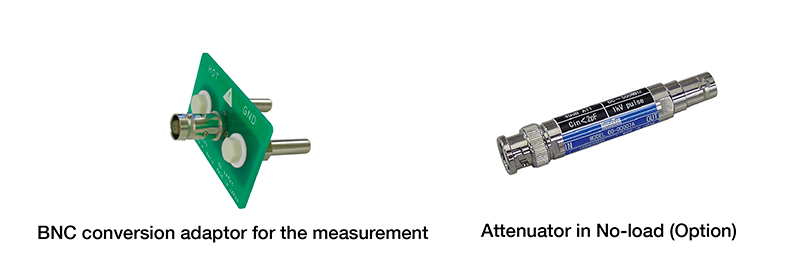

It can be done easily with the optional attenuator.
Specifications
Parameter Specification Output voltage (Us) -10 V 〜 -350 V (-1 Vstep)
10 V 〜 350 V (1 Vstep)Output impedance (Ri) 50 Ω Pulse width (td) 150ns ± 45ns Rise time (tr) 5ns ± 1.5ns, <3.5ns Pulse repetition period (t1) 10μs 〜 999μs (1μs step)
*1 kHz 〜 100 kHz Frequency sweep possible (option necessary)DUT power capacity DC60V/30A Dimensions (W)430 x (H)200 x (D)522 mm Weight Approx. 17 kg Power consumption 110 VA Parameter Q'ty Output cable (0.5m) Each 1 pc. of red & black color one DC input cable (2m) 1 pc. BNC conversion adaptor 1 pc. 50Ω coaxial cable (BNC equipped) 1 pc. G cable 1 pc. Waveform verification lead 1 pc. Interlock plug 1 pc. Fuse (3.15A) 2 pcs. AC cable 1 pc. Instruction manual 1 volume Contact
