This product is no longer manufactured or sold.
Product body (Discontinued) Pulse 5a / 5b Generator ISS-7650
Pulse 5a : Simulation of load dump transient, occurring in the event of a discharged battery being disconnected while the alternator is generating charging current and with other loads remaining on the alternator circuit at this moment.
Pulse 5b : Simulation of the above load dump transient when a Zener diode is inserted to the battery route.

Features
- ISO 7637-2 (2004) compliant pulse 5a
- Pulse 5a and Pulse 5b generating unit
- A built-in 60 V / 30 A Coupling Network allows independent operation.
- Equipped with a programmable clip circuit that can produce Pulse 5b clipped waveform in steps of 0.1 V without externally attaching a zener diode.
*The ISO standard requires pulse 5a and 5b have the same value for their td. Due to the effects of the integrated clip circuit, pulse 5b width is different from that of pulse 5a. Pulse 5b non-compliant to ISO 16750 (2012) Test B

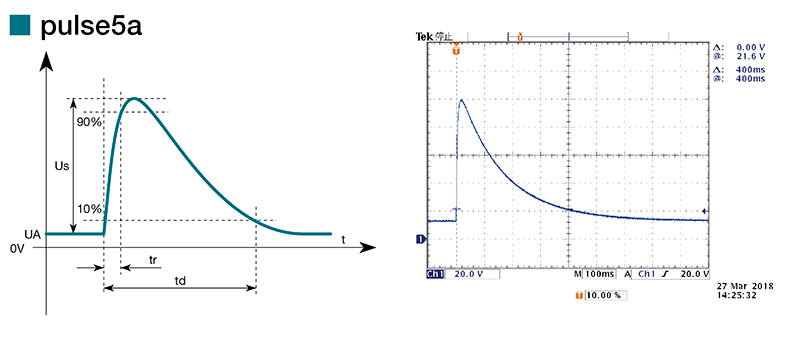

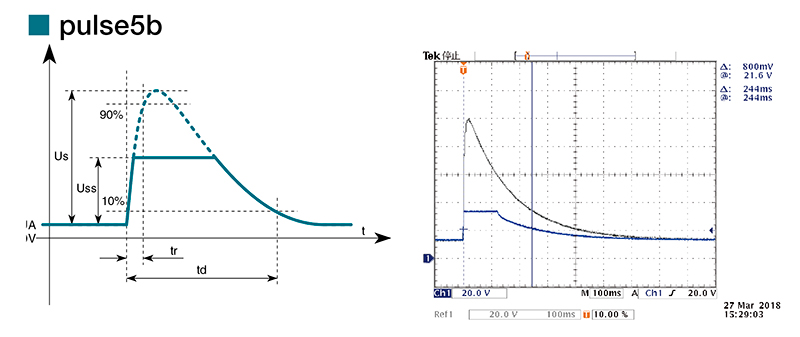

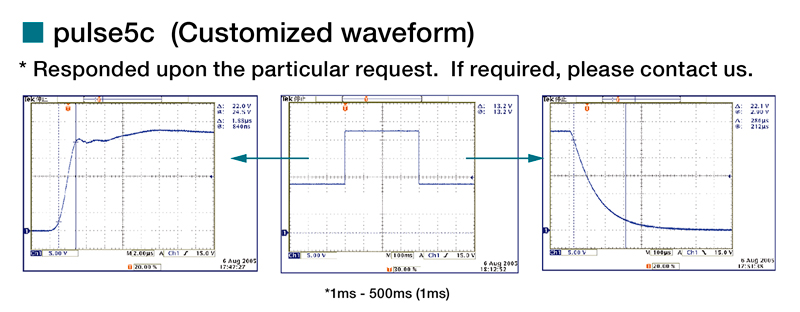

■Output waveform
Specifications
Parameter Specification Pulse5a 12 V system 24 V system Output voltage (Us) 20 V 〜 100 V (0.5 V step) 20 V 〜 200 V (0.5 V step) Output impedance (Ri) 0.5 Ω 〜 8 Ω (0.5 Ω step) 1 Ω 〜 8 Ω (0.5 Ω step) Pulse width (td) 40ms, 100ms ,200ms, 350ms ,400ms 100ms ,200ms ,350ms ,400ms Rise time (tr) 10ms (+0, -5ms) 10ms (+0, -5ms) Pulse5b 12 V system 24V system Output voltage (Uss) 10 V 〜 40 V (0.1 V step) Pulse width (td) Td of pulse 5b is dependent on Us, Uss and Ri settings, the same value as pulse 5a td not available DUT power capacity DC 60 V / 30 A Dimensions (W)488 x (H)670 x (D)660 mm Weight Approx. 100 kg Power consumption150 VA (in stand-by) / 600 VA (in charging) Parameter Q'ty Output cable (2 m) Each 1 pc. of red & black color one DC input cable (2 m) 1 pc. Coaxial cable for current monitoring 1 pc. DC coupling switching plug 1 pc. Short lead for waveform verification 1 pc. Interlock plug 1 pc. Fuse (6.3 A) 2 pcs. AC cable 1 pc. Instruction manual 1 volume Contact
