This product is no longer manufactured or sold.
Telecom CDN for LSS-6330 MODEL : LSS-6330TEL

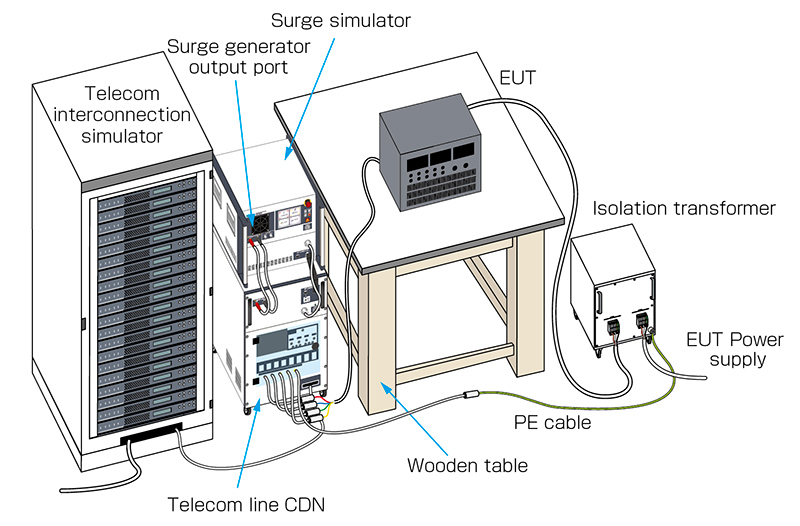

This CDN product is used to apply surges to unshielded symmetrical interconnection or telecom lines, as defined in the IEC61000-4-5 Standard.
* Please inquire us for more details.
Features
Specifications
Parameter Specifications Surge Input Voltage 6ｋV EUT Power Supply
CapacityDC50V /100ｍＡ MAX Maximum line Number 4 Lines Decoupling Coil 20 mH each line Coupling Resistor 40 Ω (1.2/50μs - 8/20μs Combination wave)
25Ω (10/700μs - 5/320μs Combination wave)Dimensions / Weight (W) 430 x (H) 695 x (D) 686mm Approx. 75kgs Contact
